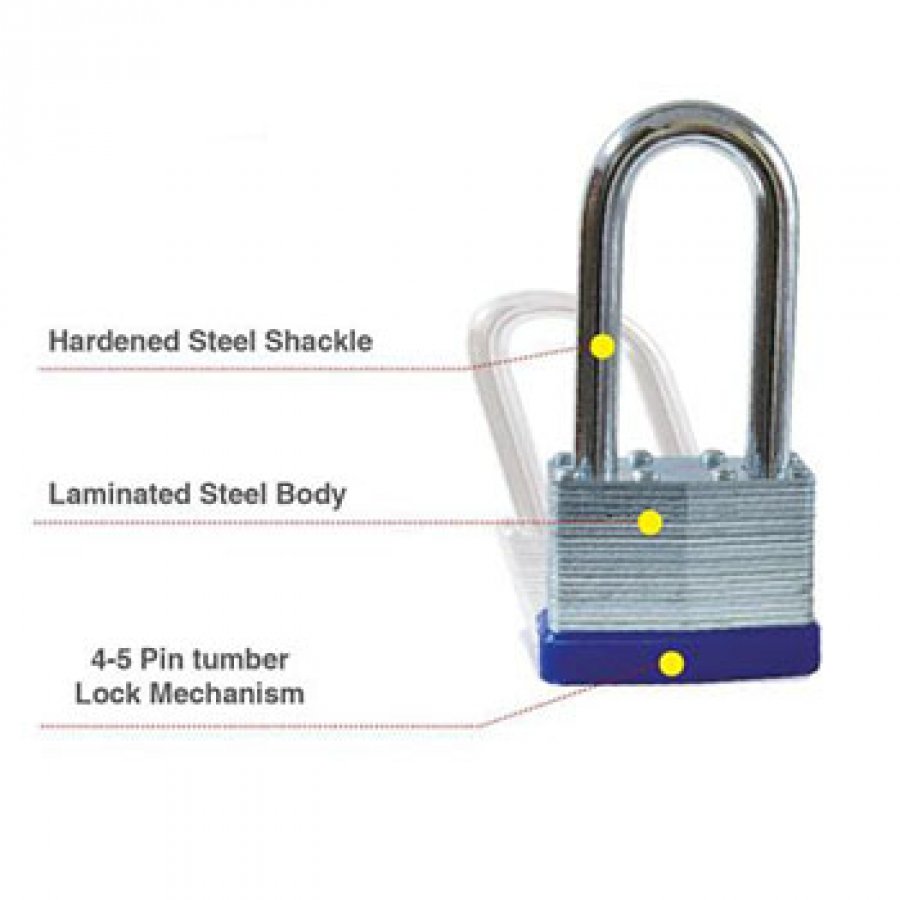

1>HARDENED STEEL CHROME PLATED SHACKLE RESISTS SAWING,PRYING ANDFILING,NORMAL OR LONG SHACKLE AVAILABLE
2>GALVANIZED-STEEL LOCKBODY IS INDIVIDUALLY ZINC PLATED OR NICKEL PLATED FOR CORROSION PROTECTION
3>BRASS CYLINDER OR ZINC ALLOY CYLINDER FOR MAXIMUM PICK,RESISTANCE AND SMOOTH OPERATION IN ALL WEATHER CONDITIONS
4>TWO STEEL KEY OR BRASS KEY WITH NICKEL PLATED,AVAILABLE WITH KEYED ALIKE AND KEYED DIFFERENCE

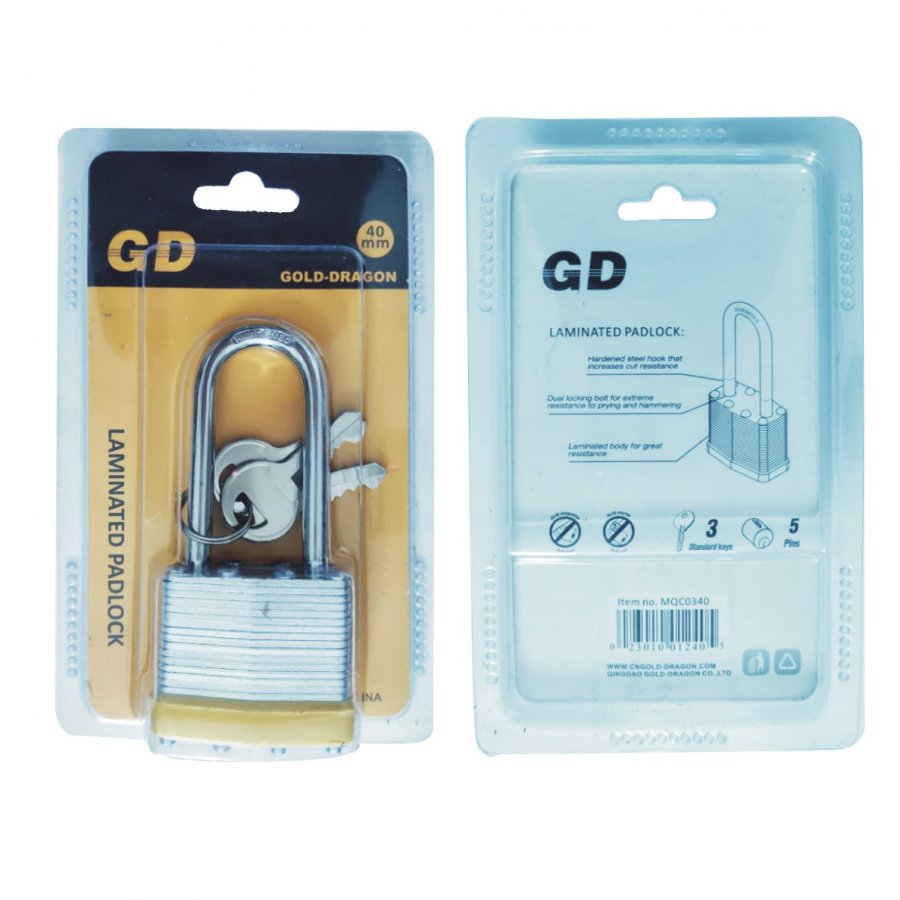

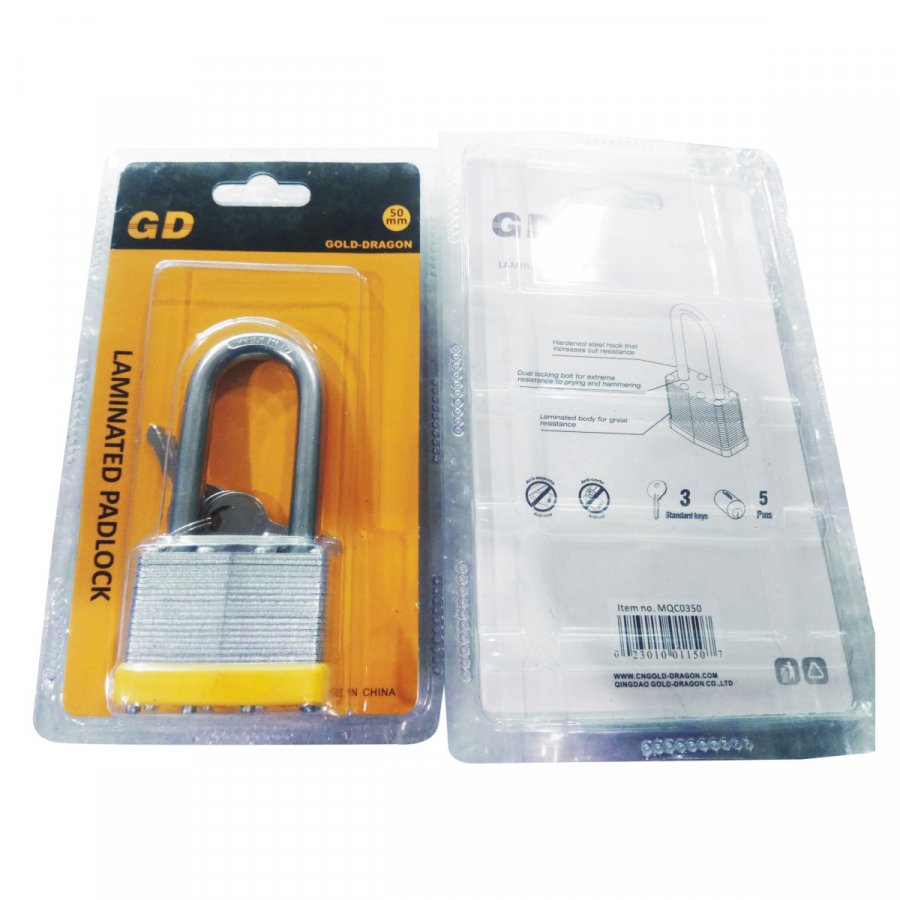

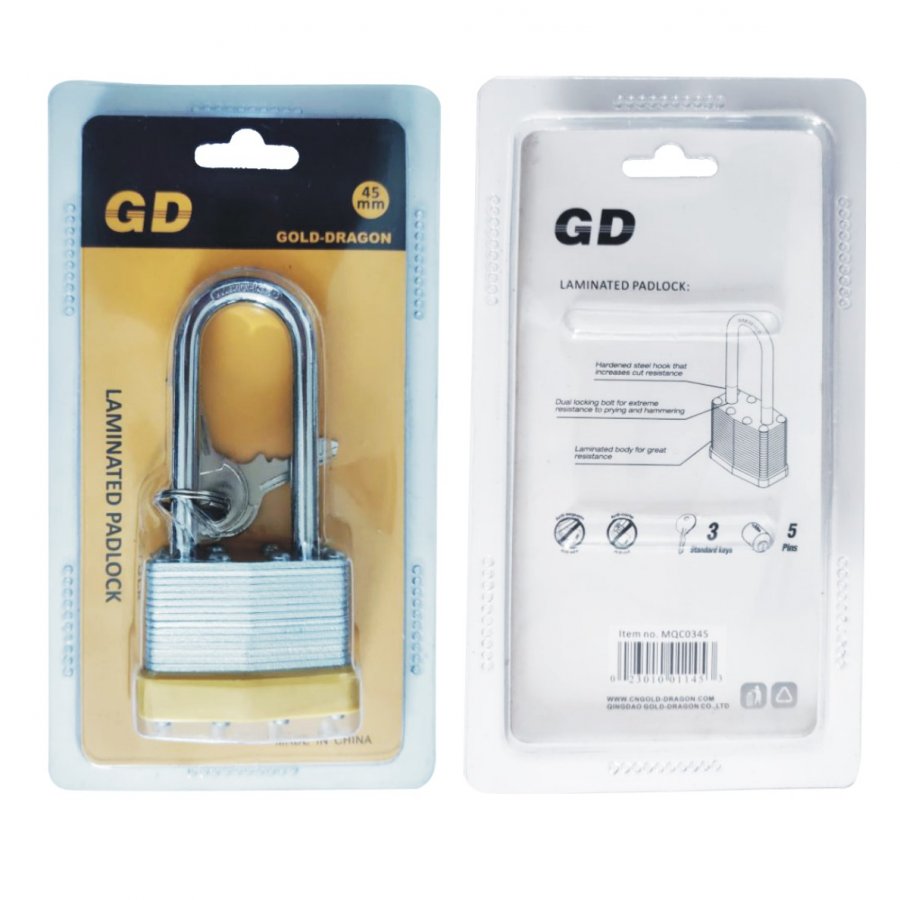

5>BOX PACKAGE OR DOUBLE BLISTER PACKAGE ARE AVAILABLE

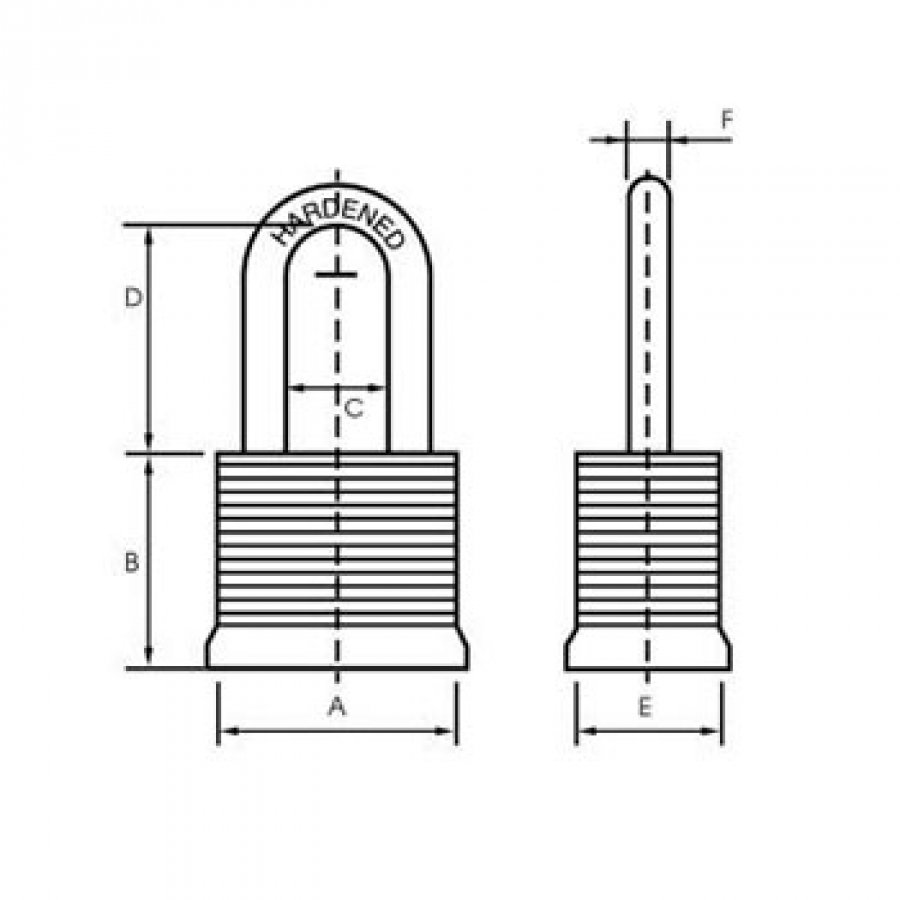

| ITEM NO. | SIZE | HS CODE | MEASURES | ||||||
| A | B | C | D | E | F | pin no. | |||
| GDQC0330 | 30mm | 8301100000 | 31 | 26.4 | 14.5 | 39.5 | 17.5 | 5 | 4 |
| GDQC0340 | 40mm | 8301100000 | 40 | 33 | 20.5 | 53 | 22.5 | 6.1 | 4 |
| GDQC0345 | 45mm | 8301100000 | 45 | 33 | 21 | 60 | 23.5 | 7 | 4 |
| GDQC0350 | 50mm | 8301100000 | 50 | 37.5 | 24.5 | 61 | 26 | 8.8 | 5 |
| GDQC0365 | 65mm | 8301100000 | 65 | 45 | 30 | 88 | 31 | 11 | 5 |
