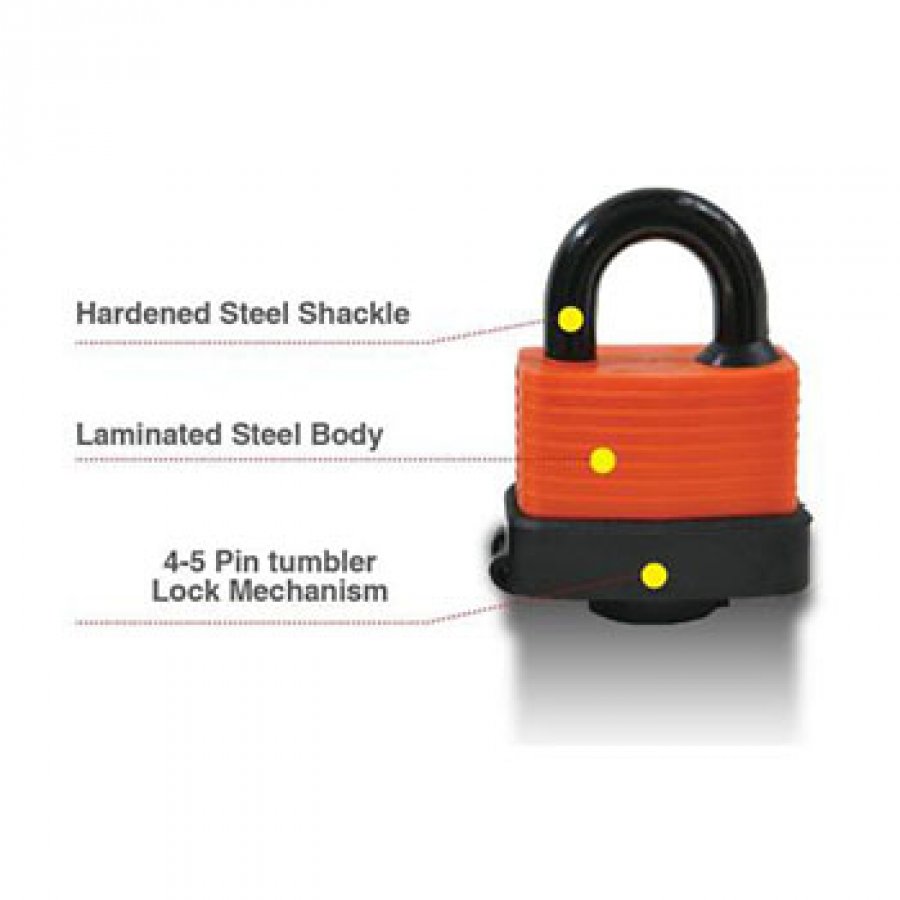

1>THERMOPLASTIC ENCASE HARDENED STEEL SHACKLE RESISTS SAWING,CUTTING AND CORROSION,NORMAL OR LONG SHACKLE
2>STRONG LAMINATED STEEL BODY COVERED WITH THERMOPLSTIC JACKET SEEL WASTER,DUST,MOISTURE AND DIRTY,WEATHER-RESISTANT,JACKET AVAILABLE IN DIFFERENT COLOR
3>DOUBLE LOCKING MECHANISM
4>BRASS CYLINDER OR ZINC ALLOY CYLINDER FOR MAXIMUM PICK,RESISTANCE AND SMOOTH OPERATION IN ALL WEATHER CONDITIONS
5>TWO STEEL KEY OR BRASS KEY WITH NICKEL PLATED,AVAILABLE WITH KEYED ALIKE AND KEYED DIFFERENCE

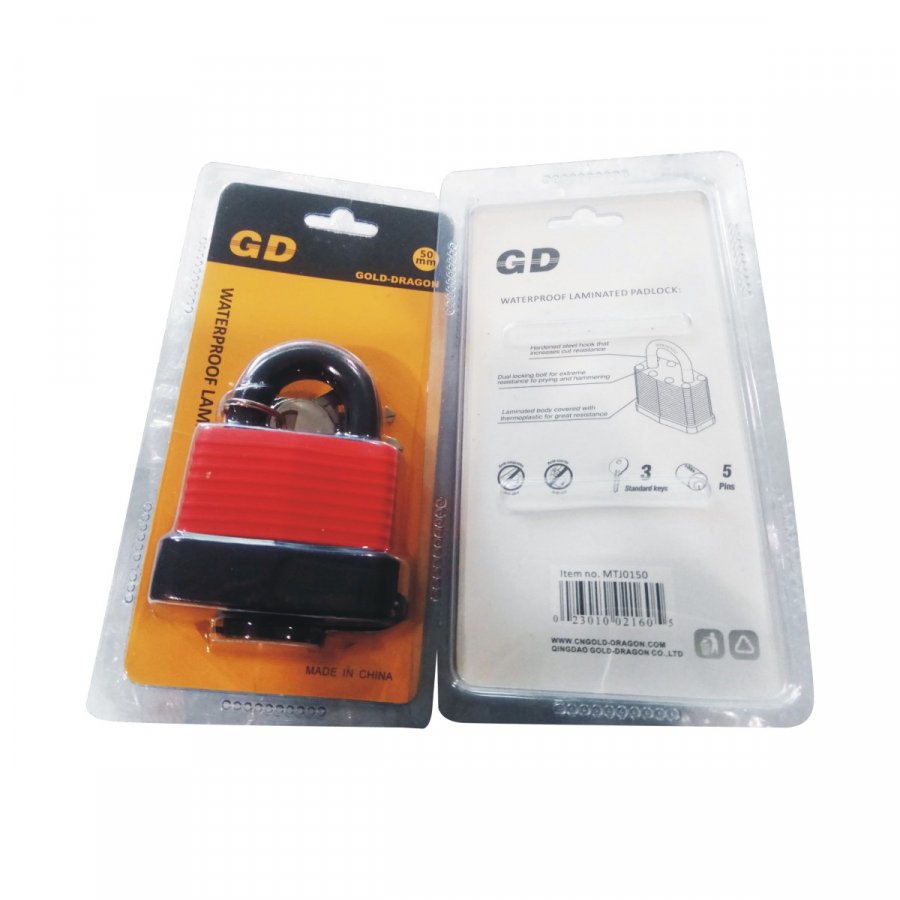

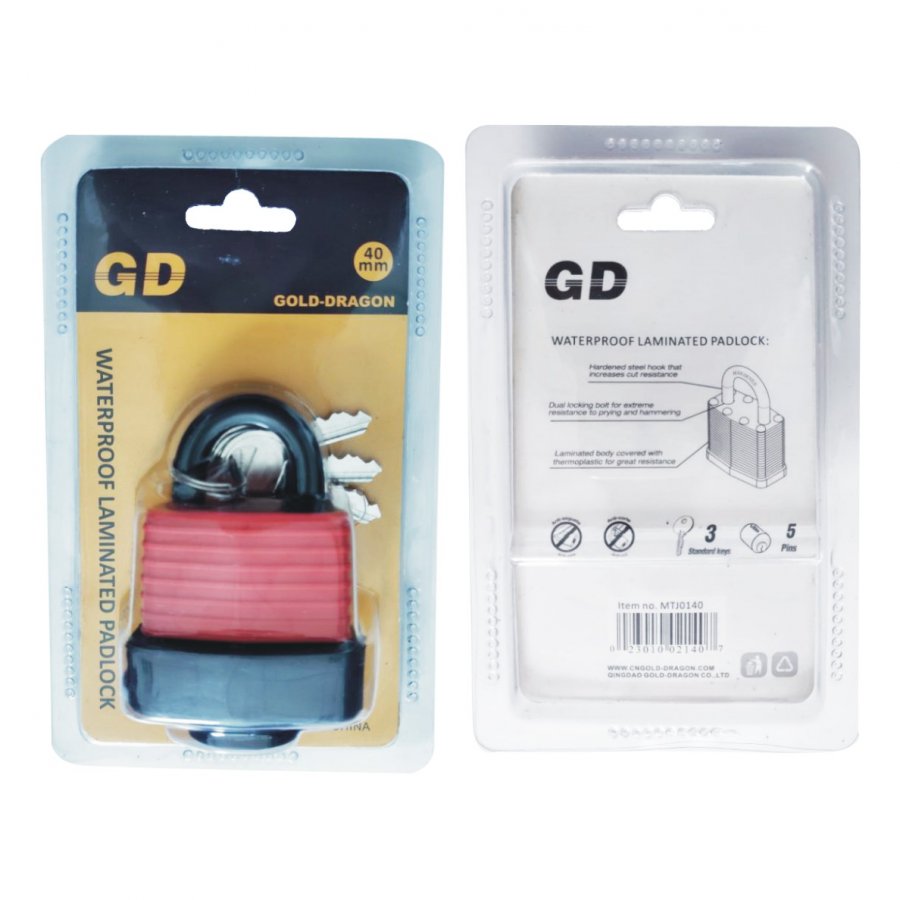

6>BOX PACKAGE OR DOUBLE BLISTER PACKAGE ARE AVAILABLE

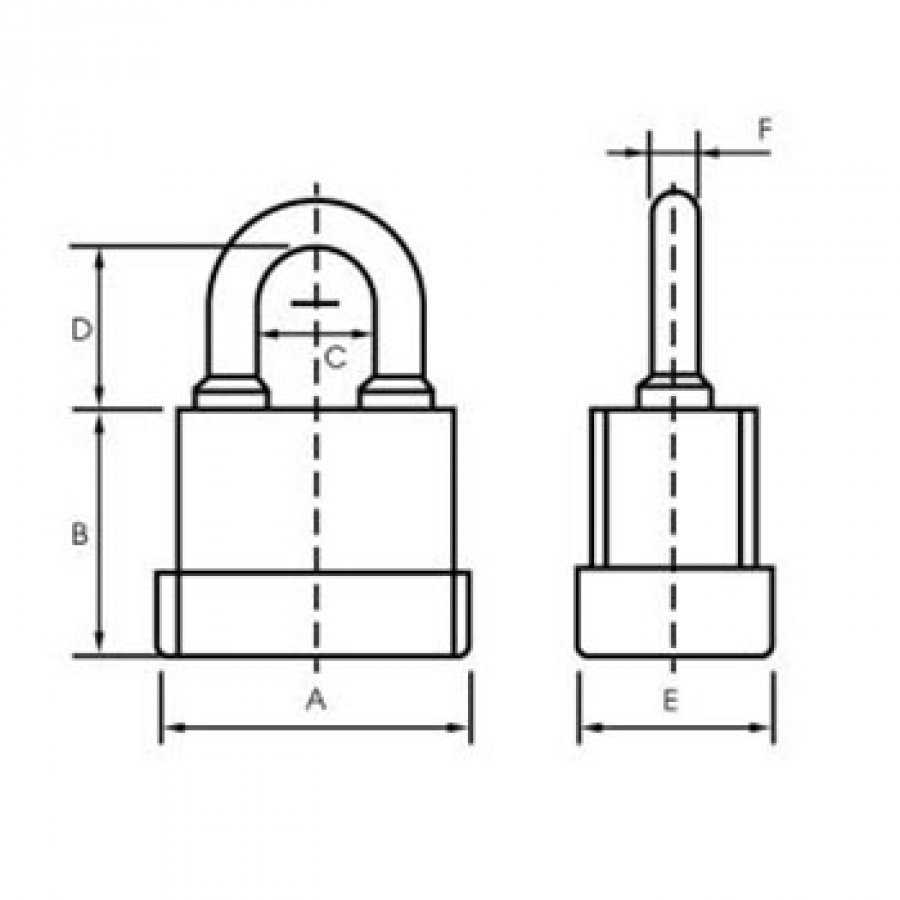

| ITEM NO. | SIZE | HS CODE | MEASURES | ||||||
| A | B | C | D | E | F | pin no. | |||
| GDTJ0130 | 30mm | 8301100000 | 39 | 30 | 13.5 | 14 | 28 | 6 | 4 |
| GDTJ0140 | 40mm | 8301100000 | 49 | 40 | 19.5 | 19.5 | 31 | 7.5 | 4 |
| GDTJ0150 | 50mm | 8301100000 | 59 | 44 | 22.5 | 23 | 35 | 10.5 | 5 |
| GDTJ0165 | 65mm | 8301100000 | 74 | 51 | 28 | 33.5 | 40 | 13 | 5 |
| GDTJ0230 | 30mm | 8301100000 | 39 | 30 | 13.5 | 36 | 28 | 6 | 4 |
| GDTJ0240 | 40mm | 8301100000 | 49 | 40 | 19.5 | 41 | 31 | 7.5 | 4 |
| GDTJ0250 | 50mm | 8301100000 | 59 | 44 | 22.5 | 57 | 35 | 10.5 | 5 |
| GDTJ0265 | 65mm | 8301100000 | 74 | 51 | 28 | 82 | 40 | 13 | 5 |
